The FS100 Incinerator is a cutting-edge solution designed to handle various waste types with ease. With its advanced features and reliable performance, it offers a cost effective and enviromentally friendly way to manage your waste.

The FS100 is a highly flexible solution based on client requirements - The FS100 is a front-loaded incinerator with the option to have it fitted with a fully automatic loading system featuring our Ram Loader and Bin Tipper Systems as well as optional Gas Cleaning / APC if required to meet any of the current emissions standards world wide.

Our units are built to the highest quality and environmental standards and they have been deployed all over the world for everything from disaster recovery, secure destruction for sensitive waste to Oil & Gas and Mine Sites, we have a the waste solution for you.

Environmentally Friendly Incineration by Design

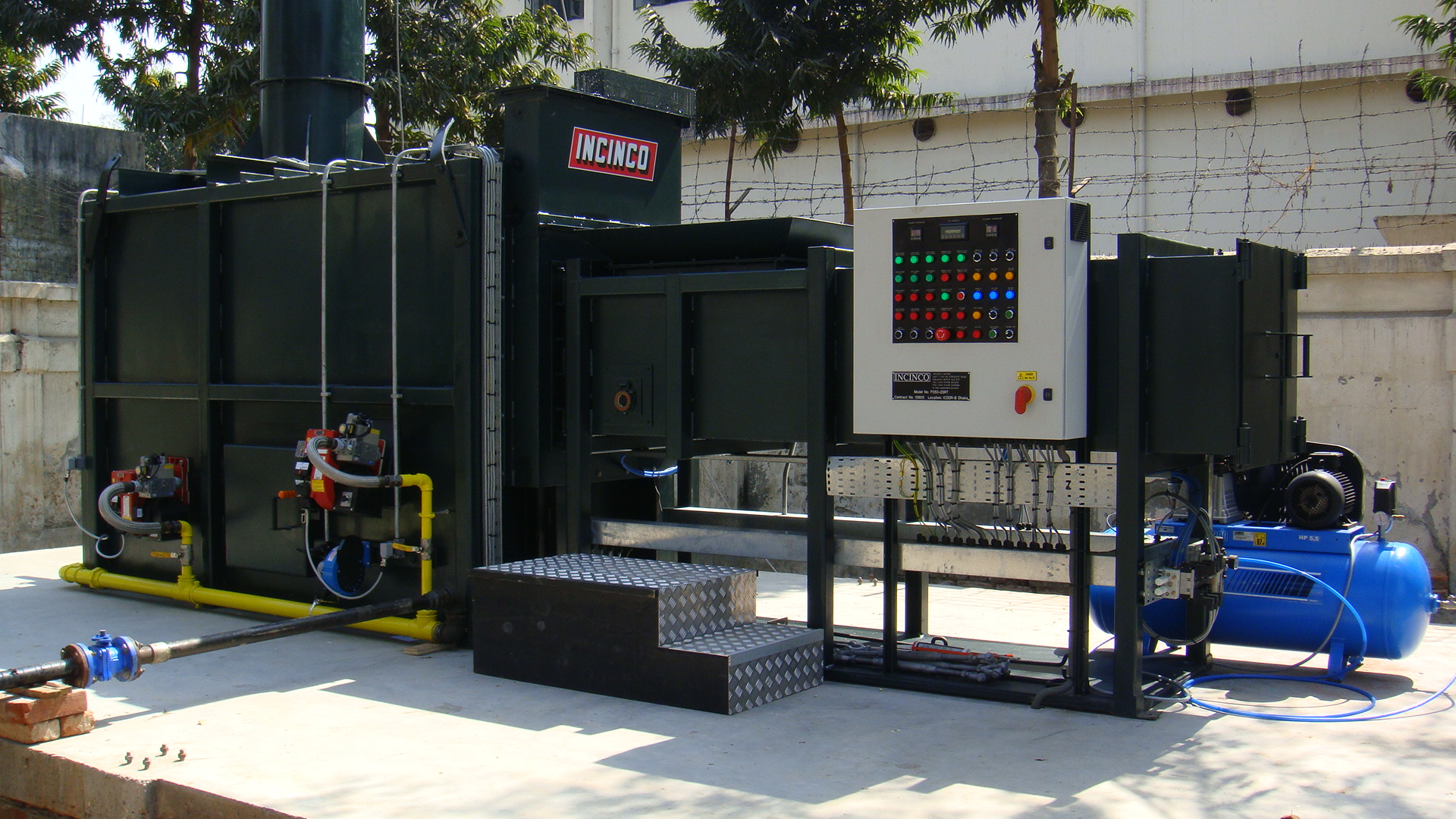

The FS100 Incinerator is a compact unit within our FS range, designed to burn/process waste at a rate of up to 100kg/hr The primary chamber allows for the loading of a mixture of waste types from low-high density waste. Benefiting from two primary burners complete with an automatic combustion air system to ensure good combustion conditions within the primary combustion chamber.

The gases released from the waste in the combustion chamber then flow through into the secondary chamber this has two secondary / after burners and an additional combustion air system to maintain the chamber temperature of 850^oC (1,050^oC if Hazardous Waste) for a retention time of 2 Seconds.
‍

Tri Layered Insulated Lining for Longjevity and Efficiency

The FS100 has a multi layered / tri layered approach to our refractory lining, consisting of two separate insulating layers, refractory concrete and high temperature alumnia bricks resulting in high thermal efficiency as well as delivering a reliable incineration cycle.
‍

Automatic Loading Systems

There are multiple loading options available - as standard you can load manually through the front facing loading door which includes viewing ports to allow the operator to safely monitor the incineration cycles. This prevents overloading to ensure you have consistent results from each operation cycle.

Additional loading systems are available with a fully automatic loading system featuring our Ram Loader and Bin Tipper Systems. The FS100 is accompanied by a fully automatic control system with HMI. The machine is completely automatic.
‍

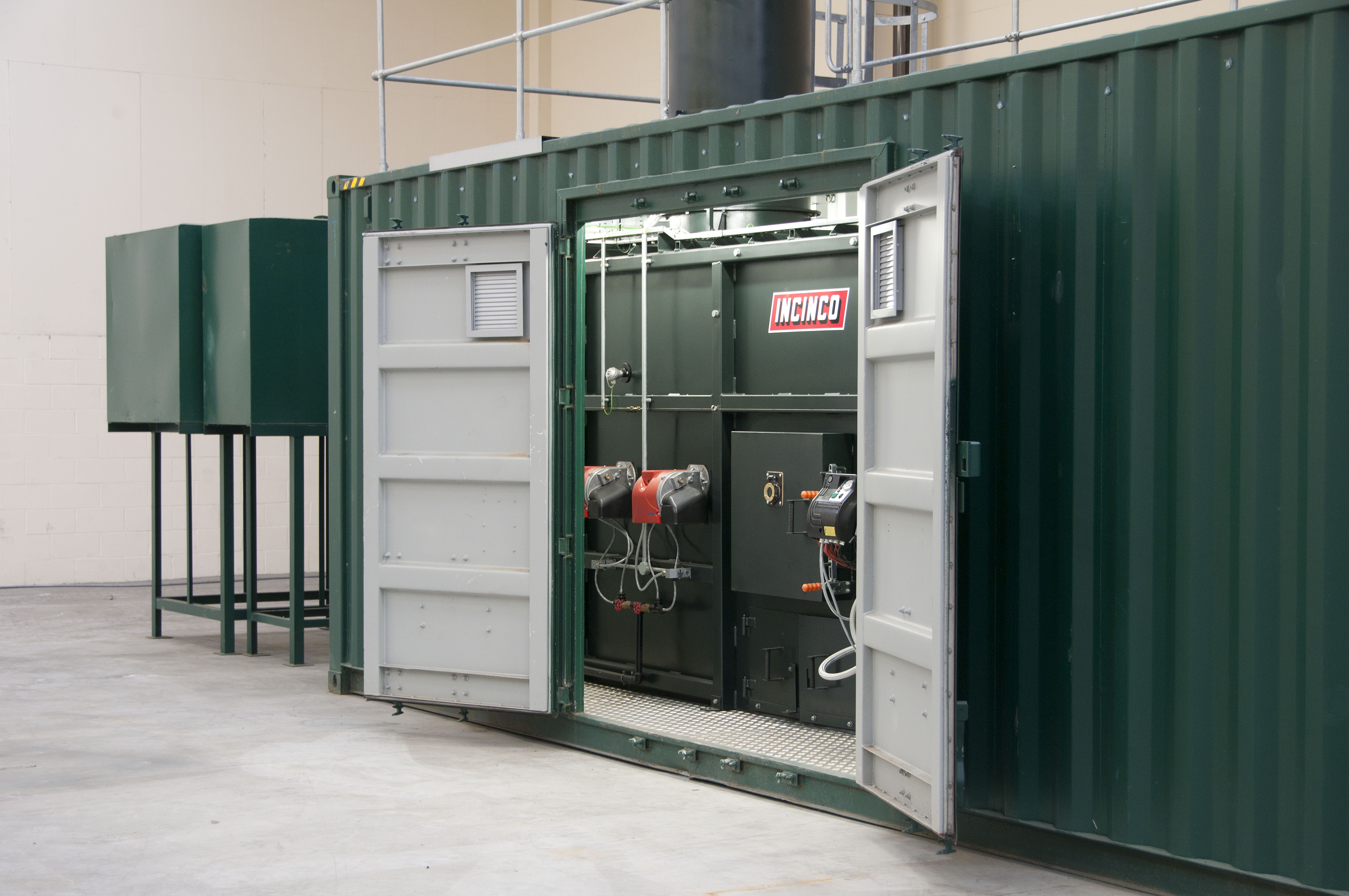

Containerised Incinerator Option

The FS100 has been designed with a modular approach with many configurations and can configured as a containerised unit for remote sites, such as camps, oil & gas sites, mine sites and disaster zones.
‍

Design Principles

As with all Incinco incinerators the FS100 incorporates a primary chamber for incinerating waste, leading into a secondary chamber to process the gas with a 2 second retention enabling environmentally sustainable operation.

Gas Cleaning / Air Pollution Control

We also offer advanced filtration options including our ceramic filtration system. as well as wet gas scrubbers and Venturi systems.
The need for filtration systems will depend upon your waste stream and environmental permit.
‍

All Incinco’s incinerators are designed and manufactured to meet and exceed current standards across the world with our latest machines beating the latest standards by up to 80% on specific emission limits.
‍

Engineered,Designed & Built In the UK

All our machines are made and assembled in Great Britain, are CE certified and built to the highest standards in line with BS,EU and WHO guidelines.
